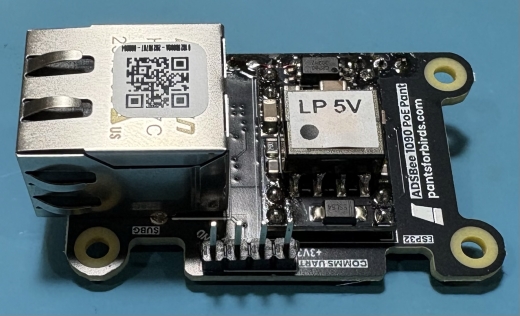

ADSBee 1090 – PoE Expansion Board

Product description

PoE pant for running the ADSBee 1090 / 1090U from an IEEE 802.3af Power over Ethernet (PoE) connection. Includes standoffs and mounting screws for attaching the ADSBee.

To connect the ADSBee via Ethernet once the PoE pant is installed, disable the WiFi station and access point and enable Ethernet with the following commands:

 AT+WIFI_STA=0

 AT+WIFI_AP=0

 AT+ETHERNET=1

 Note that this pant requires 13×2.54mm through-hole pin headers to be soldered to the ADSBee 1090U (included with the pant).

Applications

• Building and expanding ADS-B receiving systems
• Ground stations and embedded installations
• Mounting, power and enclosure integration
