Product description

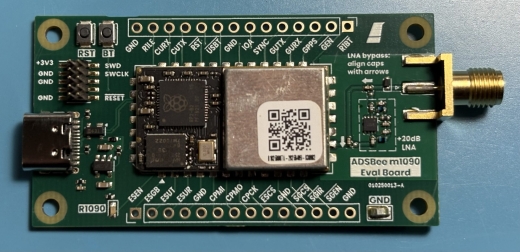

The ADSBee m1090 Eval Board is the evaluation and development platform for the ADSBee m1090. The board includes the m1090 module and an external LNA, while all relevant functions are exposed through 2.54 mm pin headers.
The included m1090 is a single-band 1090 MHz Mode S / ADS-B receiver. Networking, sub-GHz radio and ESP32 functionality are not integrated. If required, an external ESP32-S3 evaluation board and a TI CC1312 LaunchPad can be connected to add functionality similar to the ADSBee 1090U.
Highlights
- Evaluation board for the ADSBee m1090
- m1090 module included
- Single-band 1090 MHz Mode S / ADS-B
- External LNA on the evaluation board
- 2.54 mm pin headers expose all m1090 functions
- JTAG-style SWD programming/debug header
- External ESP32-S3 and TI CC1312 development boards can be connected
- Ideal for prototyping and OEM integration
Applications
m1090 evaluation, prototyping, firmware and hardware development, OEM integration and development of custom 1090 MHz ADS-B receiver systems.
Manufacturer Information
Manufacturer: Pants for Birds LLC
USA
Website: https://pantsforbirds.com/
EU Distributor: hentronic GmbH, Germany
USA
Website: https://pantsforbirds.com/
EU Distributor: hentronic GmbH, Germany
