Product description
The ESPARGOS One Core Kit is a phase-coherent 2.4 GHz Wi-Fi measurement array designed for research, development and education. Eight phase-synchronized ESP32-based receiver channels capture Channel State Information (CSI) simultaneously across eight dual-polarized patch antennas.
This gives researchers access not only to received signal power but also to complex amplitude and phase information across OFDM subcarriers. ESPARGOS One is suitable for angle-of-arrival estimation, MUSIC spatial spectrum analysis, channel sounding, azimuth-delay studies, multipath analysis, antenna measurements and reproducible CSI datasets.
Highlights
- 8 phase-coherent receiver channels
- 4 × 2 array with 8 dual-polarized patch antennas
- 2.4 GHz ISM band, channels 1–13
- Supports IEEE 802.11g/n/ax CSI
- 20 MHz CSI bandwidth, up to 40 MHz with 802.11n HT40 channel bonding
- Real-time per-packet CSI
- 100BASE-TX Ethernet with Power over Ethernet
- IEEE 802.3at Type 1, Class 3 PoE
- USB-C power and reduced-throughput CSI streaming
- SMA SYNC IN / OUT for larger phase-coherent arrays
- Built-in web interface and open-source pyespargos Python library
- Typical power consumption approx. 3.5 W
Technical data
| Antenna arrangement | 4 × 2, 8 elements |
| Polarization | Dual slant ±45° |
| Element spacing | 60 mm, approx. λ/2 |
| Frequency range | 2.4 GHz ISM band, 2.412–2.472 GHz center frequencies |
| Wi-Fi standards | 802.11b/g/n/ax; CSI for g/n/ax |
| CSI bandwidth | 20 MHz, up to 40 MHz with 802.11n HT40 |
| Ethernet | 100BASE-TX, RJ45, PoE |
| Synchronization | 2 × SMA, 40 MHz clock + 2.4 GHz phase reference |
| Dimensions | 240 × 120 × 26.5 mm |
| Operating environment | 0 to +50 °C, indoor use |
Included

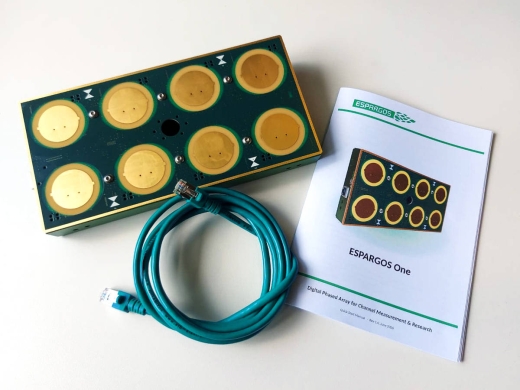

- 1 × ESPARGOS One antenna array
- 1 × 2 m network cable
- 1 × printed quick start manual
Applications
Wi-Fi channel sounding, angle of arrival, MUSIC, spatial spectrum analysis, multipath analysis, antenna and coverage measurements, MIMO/array research, wireless sensing research and education.
