Products description
Product description

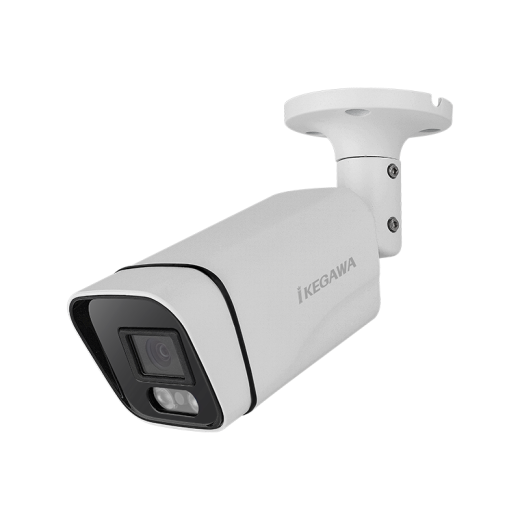

The IK-A18B18-B-CB is an 8MP HD analog camera for high-resolution video over existing coaxial cabling. Support for multiple HD analog standards makes it particularly useful for upgrades where the installed cable infrastructure is to be retained.
Highlights
- AHD/TVI/CVI/CVBS
- warm light
- microphone
- audio over coax
- Reuse of existing coax infrastructure
Technical specifications
- Resolution/sensor: 8 MP (3840×2160)
- Lens: 2,8/3,6 mm optional
- Illumination/range: warm light up to 20 m
- Interfaces/power: switchable AHD/TVI/CVI/CVBS output, audio over coax (TVI), 12 VDC
- Protection/housing: IP66
- Dimensions: Ø70 × 183,6 mm
- Weight: approx. 0,29 kg
Applications
- Upgrading existing coax infrastructures
- High-resolution video without a full IP migration
- Commercial and legacy installations
Manufacturer Information
Manufacturer: Ikegawa Co., Ltd.
1275-1, Mishima, Minami-ku Okayama
Japan
Website: https://www.ikegawacctv.com/
1275-1, Mishima, Minami-ku Okayama
Japan
Website: https://www.ikegawacctv.com/
